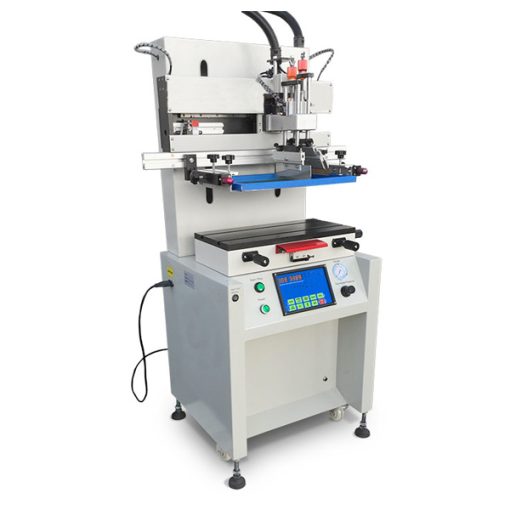

Pneumatische Flachsiebdruckmaschine

The AP pneumatic flat screen printing machine is affordable and easy to use. It features PCB board control and a pneumatic drive. This design ensures fast and stable operation. This flat bed screen printing machine supports print sizes of 200x270mm, 200x400mm, and 300x400mm. It’s great for printing on small flat items. The worktable can serve as both a vacuum table and a T-slot table for various flat products.

Flachbildschirmdrucker Einführung:

The pneumatic flat screen printing machine features a smooth, pneumatically driven system. It lifts the screen frame vertically, keeping the ink in optimal contact with the screen. This flat-screen lifting method helps operators load and unload small injection-molded parts easily. This includes items like cigarette lighters, ice scrapers, Frisbees, first aid kit boxes, display boxes, CDs, DVDs, and more. It’s great for industrial products like circular saw blades, stamped steel panels, chassis, and various car parts. A rodless cylinder controls the horizontal printing stroke pneumatically. It features quick-release stop guides for easy adjustments. The machine has an X/Y/R fine adjustment table. There’s also an E-Stop button placed on the front of the work table.

Flachbettdruckmaschine Merkmale:

  • Elektropneumatisch gesteuert
  • Pneumatisch gesteuert mit Stoßdämpfern
  • Vertikaler Kopflift mit Höhenverstellung
  • X/Y/R positioning table (with or without vacuum table)
  • Linearkugellager auf gehärteten Wellen
  • Rakelwinkel und kalibrierte Höheneinstellung
  • Regulierter Rakeldruck mit Manometer
  • Tabletop machine with adjustable levelers
  • Fußschalter gesteuert

Flachbett-Siebdrucker Spezifikationen:

Modellnummer AP-2030V/T AP-2040V/T
Druckkapazität: Bis zu 1.200 Stück pro Stunde Bis zu 1.200 Stück pro Stunde
Druckkopf: Pneumatisch Pneumatisch
Druckgröße flach (L x B): 200 x 270 mm 200 x 400 mm
Max. Bildschirmgröße (L x B): 300 x 530 mm 400 x 700 mm
Größe des Arbeitstisches (L x B):: 240 x 400 mm 240 x 500 mm
Druckhöhe 90mm 400mm
Druckstrich (links und rechts): 300mm 160mm
Spannung: 110/220V 50/60Hz 50W 110/220V 50/60Hz 50W
Gewicht: 150 Kg. 150 Kg. (331 lbs.)
Abmessungen: 870x850x1550mm 870x850x1550mm

Ähnliche Produkte

automatische Siebdruckmaschine

Elektrische automatische Flachbett-Siebdruckmaschine

The AP series electric flat screen printing machine features an AC motor. It allows movement in the left, right, up, and down directions. The PLC-controlled brand, with a touchscreen, makes the machine programmable. The electric drive offers more stable working performance than pneumatic-type machines. You can find the standard electric flat screen printer in various sizes. Options include 300x500mm, 400x600mm, 500x700mm, 600x900mm, and 700x1200mm, depending on your print area. And we can print at a larger size. The worktable can be both a vacuum table and a T-slot table for different print parts. This accurate series machine is commonly used in industrial printing. It prints on transfer paper, decals, membrane switches, and even automobile dashboards.

Servoangetriebene Flachsiebdruckmaschine

The AP-3040S flat screen printing machine uses a servo drive for precise left/right and up/down movements. It has a maximum print size of 300 x 400 mm. You can control it with a branded PLC and touchscreen. It offers high precision and very stable working conditions. This servo flat-screen printer is a premium machine. It ensures accurate printing on parts for electronics, automotive, and medical industries. This servo-driven machine comes in various print sizes, including 300x500mm, 400x600mm, and 500x700mm. We also offer custom models.

Rotierende automatische 3-Farben-UV-Siebdruckmaschine

AP-F324 is a 3-color fully automatic screen printing machine. This automatic flat-screen printing machine features a rotary working table. It has a complete printing process. This process involves an auto-infeed conveyor, a deionizing device, screen printing, UV curing, and an auto-outfeed conveyor. The print size is 110x90mm. It features a SANKYO rotary system and a branded motor. This automatic flat-screen printer is popular for printing small parts. It can handle glass panels, print dressings, stationery rulers, flat pens, and small glass sheets.

Automatische Drei-Farben-Flachbildschirm-Drucklinie

AP-600-3C is an automatic UV flat screen printing machine. It features a full printing system. This system includes auto-loading, screen printing, UV curing, and auto-unloading. This flat automatic screen printing line has a maximum print size of 120 x 180 mm. It is suitable for printing on small-sized industrial parts. It has a branded servo drive and PLC control. This setup guarantees accurate printing tolerances. This machine is popular for precise product printing. It works well on stamped metal panels, powder-coated materials, injection-molded parts, and more.

Halbautomatische Flachbett-Siebdruckmaschine mit Drehtisch

AP-360F-400 is a semi-automatic flat screen printing machine with a rotary table. Brand PLC controlled with pneumatic driven, max print size 100x150mm, 4 working stations. This flat-screen printer is excellent for small parts. It allows for easy loading and unloading while printing. The rotary table machine can have rotary tables in different sizes, depending on requirements, such as 6 or 8 stations. And the work table can be with or without a vacuum.
