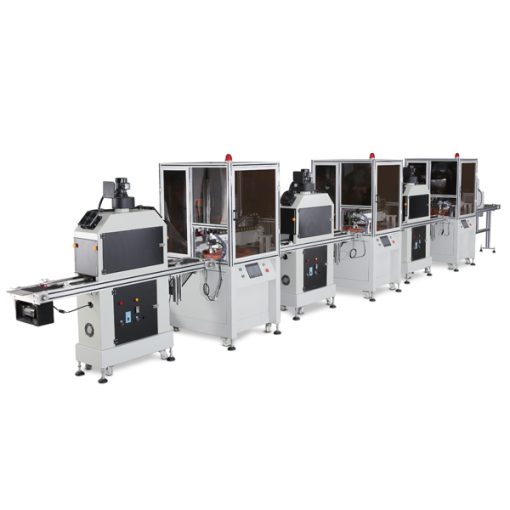

Ligne d'impression automatique de sérigraphie à plat en trois couleurs

AP-600-3C is an automatic UV flat screen printing machine. It features a full printing system. This system includes auto-loading, screen printing, UV curing, and auto-unloading. This flat automatic screen printing line has a maximum print size of 120 x 180 mm. It is suitable for printing on small-sized industrial parts. It has a branded servo drive and PLC control. This setup guarantees accurate printing tolerances.
This machine is popular for precise product printing. It works well on stamped metal panels, powder-coated materials, injection-molded parts, and more.

Presse d'impression à plat Introduction :

AP-600-3C is a 3-color automatic screen printing line. It combines part loading, screen printing, and UV curing into a single system. It can complete 3-color printing in one pass. This screen-printing machine improves printing efficiency and reduces labor costs. It is servo motor–driven and PLC-controlled to maintain high-precision printing tolerances. It is suitable for accurate and high-standard parts printing. The 120x180mm print size is ideal for small flat components. This range includes stamped metal panels, powder-coated materials, and injection-molded parts.

Imprimante à écran plat Caractéristiques :

  • 3-color printing at once, saving labor costs in registration
  • Auto loading and unloading with conveyor connection option available
  • High-precision servo–driven and programmable branded PLC-controlled
  • Solidly built with a heavy machine base

Presse d'impression à plat Spécifications :

Modèle AP-600-3C
Système d'entraînement Entraînement par servomoteur
Système de contrôle PLC avec écran tactile
Couleur d'impression 3 couleurs
Surface d'impression maximale 120x180mm
Taille de la table de travail 150x200mm
Vitesse d'impression maximale 800-1 000 cycles/h
Source électrique 110/220/230V 50/60Hz
Entrée de la pression d'air 5-7 bar
Poids de la machine 870 kg
Dimensions de la machine 9800x1000x1725mm
