Introduction:

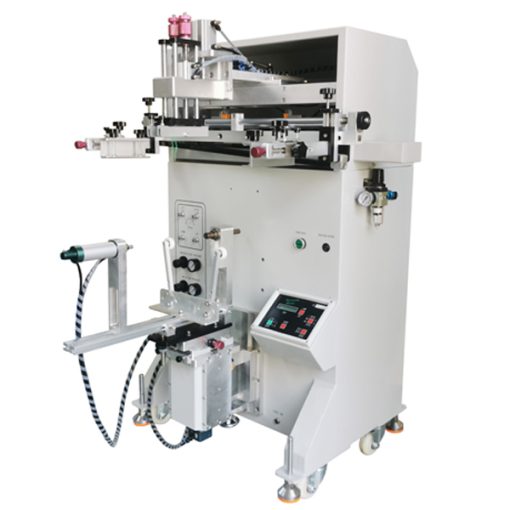

OS-400 semi-automatic bottle and container screen printer is a well-designed and versatile machine. The OS-400 can screen print on flat and cylindrical objects. Such as blow-molded bottles, cosmetic tubes, aluminum water bottles, drumsticks, and glass pipettes. The OS-400 features quick and simple tooling changeovers, precise mechanical registration, and convenient controls on the front panel. It makes the OS-400 the perfect all-around universal screen printing press.
Standard Features:
- Electro-pneumatic controlled
- Programmable set-up
- Pneumatic controlled with shock absorbers
- Vertical head lift with up/down lock
- Linear ball bearings on hardened shafts
- Foot switch controlled
- Squeegee tilt, skew, and height adjustable
- Screen frame angle adjustment
- Universal fixture bar for mounting custom tooling
- Bottle inflation system with regulator
- Bottle inflation is synchronized with print cycle
- Regulated squeegee pressure with pressure gauge
- Floor levelers & casters
- Emergency stop button installed, safety guarding is optional
Specifications:
| Model Number: | OS-400 |
| Drive System: | Pneumatic |
| Frame Up/Down Stroke: | 100mm (3.94″) |
| Maximum Print Area Round: Maximum Print Area Oval: |
110mm (4.33″) Ø
340mm (13.39″) Arc Length |
| Working Table Size: | 250 x 350mm |
| Table Adjustment: | X,Y ± 15mm / θ 15 ° |
| Maximum Screen Frame Size: | 380 x 580mm |
| Screen Frame Thickness: | 18 – 25mm (.71″ – .98″) |
| Squeegee Angle: | 0-15° |
| Printing Cycle Speed: | 1,200 cycles/hr |
| Squeegee Speed: | 20/min |
| Squeegee Pressure: | 2 – 4 Bar |
| Electric Source: | 110V/220V 50-60Hz 50W |
| Air Pressure Input: | 80 psi |
| Air Consumption: | 0.7 L/cycle |
| Machine Weight: | 150 kg |
| Machine Weight (including crating): | 190 kg |
| Dimensions (L x W x H): | 1,000 x 950 x 1,400mm |
| Crate Dimensions: | 1,080 x 1,010 x 1,520mm |
