OS 600

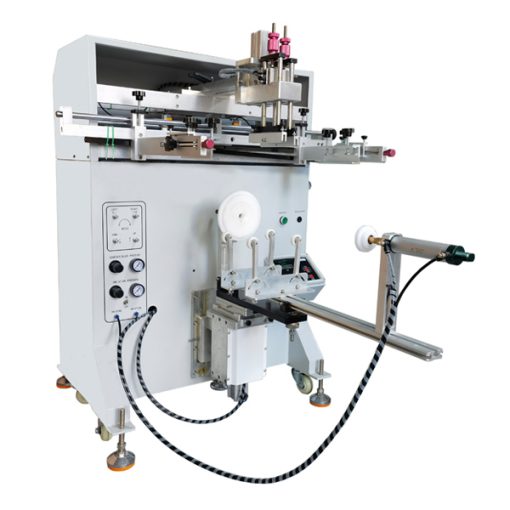

∅180mm Container Round Screen Printing Machine

AP-600 round screen printing machine is a versatile machine for round, cylinder, and oval container printing. With max. print diameter of 180mm, this cylindrical screen printer is suitable for medium size object printing. Stable machine working and easy operation as well as fast jig changeover. This machine is popular in plastic packaging, glass printing, etc. industries.

Introduction:

AP-600 round screen printing machine with a max print diameter of 180mm. This machine is suitable for medium size bottles, containers, cups, etc. printing.

Standard Features:

  • Pneumatic controlled with shock absorbers
  • Microprocessor controlled – PCB
  • Vertical part lift with height adjustment
  • Print stroke controlled with rodless cylinder
  • X/Y/R positioning ware-mounting table
  • Linear ball bearings on hardened shafts
  • Squeegee tilt, skew, and height adjustable
  • Screen frame angle & tilt adjustable
  • Synchronized bottle inflation system with regulator
  • Regulated squeegee pressure with pressure gauge
  • Floor levelers & casters
  • Foot switch controlled

Specifications:

Model No.: AP-600
Drive System: Pneumatic
Frame Up/Down Stroke: 100mm (3.94″)
Maximum Print Area Round:
Maximum Print Area Oval:		 180mm (7.08″) Ø
560mm (22.05″) Arc Length
Working Table Size: 250 x 700mm (9.84″ x 27.56″)
Table Adjustment: X,Y ± 15mm / θ 15 °
Maximum Screen Frame Size: 400 x 800mm (15.75″ x 31.50″)
Screen Frame Thickness: 18 – 25mm (.71″ – .98″)
Squeegee Angle: 0-15°
Printing Cycle Speed: 960 cycles/hr
Squeegee Speed: 16/min
Squeegee Pressure: 2 – 4 Bar
Electric Source: 110V/220V 50-60Hz 50W
Air Pressure Input: 80 psi
Air Consumption: 0.7 L/cycle
Net Weight: 170 kg
Gross Weight: 260 kg
Dimensions (L x W x H): 1,130 x 750 x 1,350mm
Crate Dimensions: 1,250 x 940 x 1,460mm
