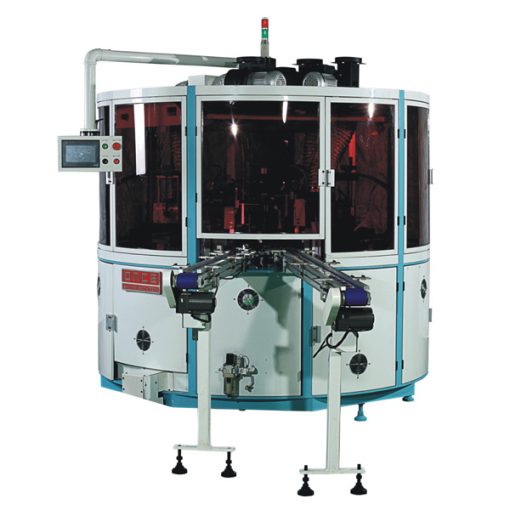

Rotary 3 Color Automatic Flat UV Screen Printing Machine

OS-324 is a 3 color fully automatic screen printing machine, this automatic flat screen printing machine with a rotary working table, integrated with full printing process of auto infeed conveyor, deionizing device for dust browing, screen print, UV curing and auto outfeed covneyor.

With a print size 110x90mm, SANKYO rotary system and  brand motor driven, this automatic flat screen printer widely used in small size part printing, such as glass panel,  print dressing cases, stationery rulers, flat pens, small glass sheet, etc.

Introduction:

The OS-324 is a  fully automatic UV screen printing machine designed for flat surfaces that offers increased productivity and unrivalled value, available print dressing cases, stationery rulers, flat pens, small glass sheet, etc.

The OS-324 are driven by a SANKYO rotary positioning drive system that provides accurate color to color print registration and features a MOTOVARIO main drive motor with a barrel cam. The UV screen printing inks are automatically cured with high powered UV lamps positioned after each printing station. After loading of the flat objects there is a pre-flame treating station and de-ionizing / cleaning station (optional) to ensure quality printing results with fewer defects.

The OS-324 system are equipped with Heraeus Fusion or ALPHA-CURE brand UV curing units (optional) which are outfitted with high intensity mercury UV bulbs.

Features:

High precision mechanical rotary indexer

OMRON PLC controlled with touch screen

Mechanically synchronized print heads for precise printing results

Automatic loading and unloading system

Quick and easy set-up and change-overs

Motor controlled optical pre-registration device

Adjustable squeegee angle and height

Up to 110 x 90mm (4.33” x 3.54”) print area

Equipped with interlocking safety doors

Printing speeds up to 50ppm

Heraeus Fusion or ALPHA-CURE brand UV Curing units (optional)

 Specifications:

Model No.: OS-F324
Print color: 3 Color
Print product size: L160 x W160 x H100 mm
Max. print area: L110 x W90 mm
Max. printing speed: 45 pcs/min
Stations: 24 stations
UV lamp power: 3 KW/UNIT 6″
Electrical supply: 380V/480V 3Phase 50Hz/60Hz
Air requirement: 6-8 bar
Power consumption: 10 KW
Machine dimension: L4500 x W3500 x H2350 mm
Weight: 1500 KG
