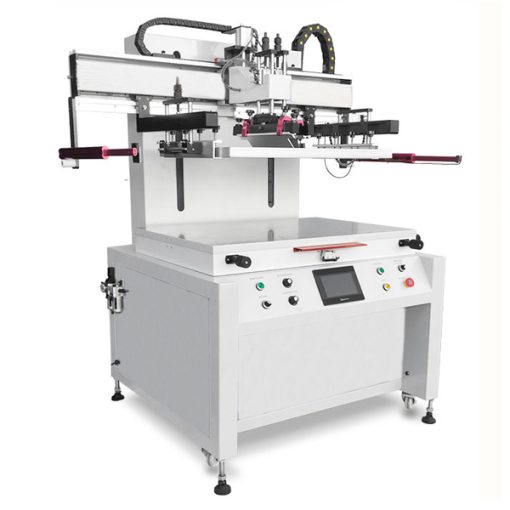

Electric Automatic Flatbed Screen Printing Machine

The AP series electric flat screen printing machine features an AC motor. It allows movement in the left, right, up, and down directions. The PLC-controlled brand, with a touchscreen, makes the machine programmable. The electric drive offers more stable working performance than pneumatic-type machines.

You can find the standard electric flat screen printer in various sizes. Options include 300x500mm, 400x600mm, 500x700mm, 600x900mm, and 700x1200mm, depending on your print area. And we can print at a larger size. The worktable can be both a vacuum table and a T-slot table for different print parts.

This accurate series machine is commonly used in industrial printing. It prints on transfer paper, decals, membrane switches, and even automobile dashboards.

Flatbed Screen Printer Introduction:

The AP series electric flatbed screen printing press features an electric-motor-driven system. It lifts the screen frame vertically, keeping the ink in the “print zone”. This flat, vertical lifting method makes it easy for the operator. They can load and unload graphic sheets during production runs. It provides the added advantage of easy viewing and inspection of the printed sheet. The horizontal printing axis is controlled electrically by an AC motor. When you use a vacuum table, it’s perfect for printing graphic panels and signs, from small to large sizes. It is also suitable for printing industrial flat goods.

Flatbed Printing Press Specifications:

Model AP-3050V AP-4060V AP-5070V AP-6090V AP-70120V
Frame up/down stroke 150mm 200mm 200mm 200mm 200mm
Print stroke(left&right) 550mm 700mm 800mm 1000mm 1300mm
Max print area 300x500mm 400x600mm 500x700mm 600x900mm 700x1200mm
Vacuum table size 300x500mm 400x600mm 500x700mm 600x900mm 700x1200mm
Working table size 350x600mm 500x700mm 600x800mm 700x1000mm 800x1300mm
Max frame size 500x830mm 600x9300mm 700x1130mm 800x13000mm 1000x14500mm
Screen frame thickness 50.8mm 50.8mm 50.8mm 50.8mm 50.8mm
Squeegee pressure 2-4 bar 2-4 bar 2-4 bar 2-4 bar 2-4 bar
Max print speed 1,200 cycles/hr 800 cycles/hr 800 cycles/hr 800 cycles/hr 600 cycles/hr
Electric source 110/220/230V 50/60Hz 110/220/230V 50/60Hz 110/220/230V 50/60Hz 380V 50/60Hz 380V 50/60Hz
Machine weight 190kg 320kg 380kg 660kg 680kg
Machine dimension 800x1050x1550mm 1150x1000x1700mm 1100x1300x1650mm 1350x1350x1700mm 1450x1650x1700mm
