Automatic UV Screen Printing Machine for Bucket

The AP-350 series automatic UV screen printing machine is a 1- to 6-color automatic screen printing line. This screen printer features a full printing process. It includes an auto feeding conveyor, auto pickup, flame treatment, screen printing, UV curing, and an auto outfeed conveyor.

The machine is fully mechanical and driven by an Italian-brand main motor. A PLC with touch screen controls all the movements. This series of machines excels in accurate printing and color-to-color registration. This machine is widely used for bucket, pail, and 5-gallon container printing.

Bottle UV Printer Introduction:

The AP-350 fully automatic UV screen printing machine is a production line capable of printing in 1- to 6-color. This equipment features a high-precision mechanical traveling frame. This frame can precisely transport components. When bucket-type products are placed in the precision processing fixture, the equipment can directly drive the products during the printing process and precisely control their rotational positioning. The entire machine is driven by an Italian-brand main motor. All operations are uniformly controlled by the PLC system. This equipment has a fully mechanical drive structure, so it operates stably and reliably.

The equipment also features a “no product, no print” sensor. When the system does not detect the workpiece, the scraper will not move. This design effectively avoids idle power consumption. The machine’s overall structure is robust. The high-precision processing fixture ensures accurate color-to-color registration during multi-color printing. In addition, the AP-350 is equipped with a flame treatment head and a high-power UV curing system. This equipment is widely used for printing on barrels, pails, 5-gallon containers, and various industrial packaging containers.

UV Print Machine Features:

  1. 1 to 6 color automatic UV screen printing equipment
  2. Print speeds up to 22 bottles per minute
  3. Prints on large pails and buckets
  4. Mechanical walking beam indexed
  5. High intensity (5KW) UV curing power
  6. Omron PLC controlled with touch screen



UV Bottle Printing Machine Specifications:

Model AP-350
Bucket size: Diameter: Ø150-350mm, Height: 200-400mm
Max. print area: L900 x W250mm
Printing capacity: Up to 22 PCS/MIN
UV lamp power: 5 KW/UNIT
Electrical: 380V/480V 3Phase 50/60Hz
Air requirement: 5-7 BAR
Power consumption: 20 KW/UNIT
Weight: 2500 KG

Product Video Showcase

Related products

tube_screen_printing_machine

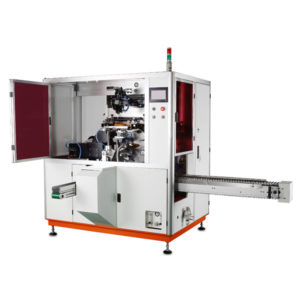

Automatic UV Screen Printing Machine for Tube and Jar

The AP-112 fully automatic UV screen printing machine is specially designed for cylindrical products. It is suitable for screen printing on various types of hoses, bottles, cans, bottle caps, and medical bottles. The supported materials include flexible or rigid plastics, as well as medical syringes, etc. This machine can print up to 75 mm in diameter. At 80 pieces per minute, its speed significantly raises production efficiency. The equipment uses an Italian-brand main motor. It also comes with a 12-position vertical rotary indexing table. A renowned PLC brand controls this table, ensuring stable operation and precise printing results. This machine features rapid changeover and is easy to operate. This fully automatic screen printing system is widely used in industries such as medical, cosmetics, and plastic packaging.

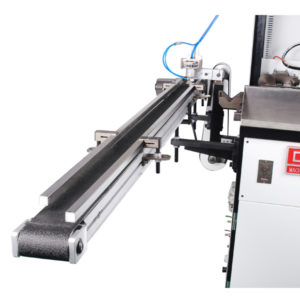

five_color_bottle_screen_printing_machinescreen_printer_infeed_conveyor
